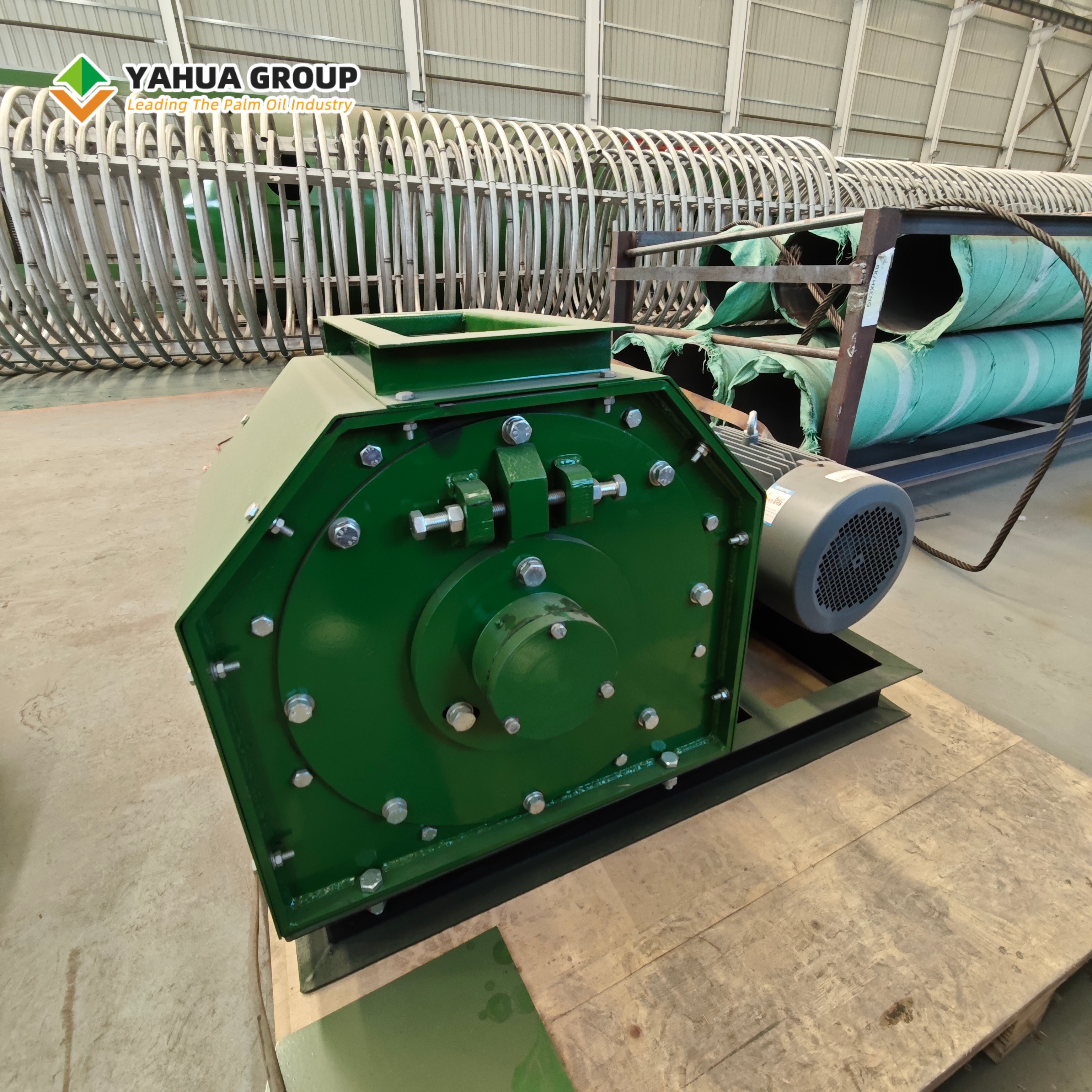

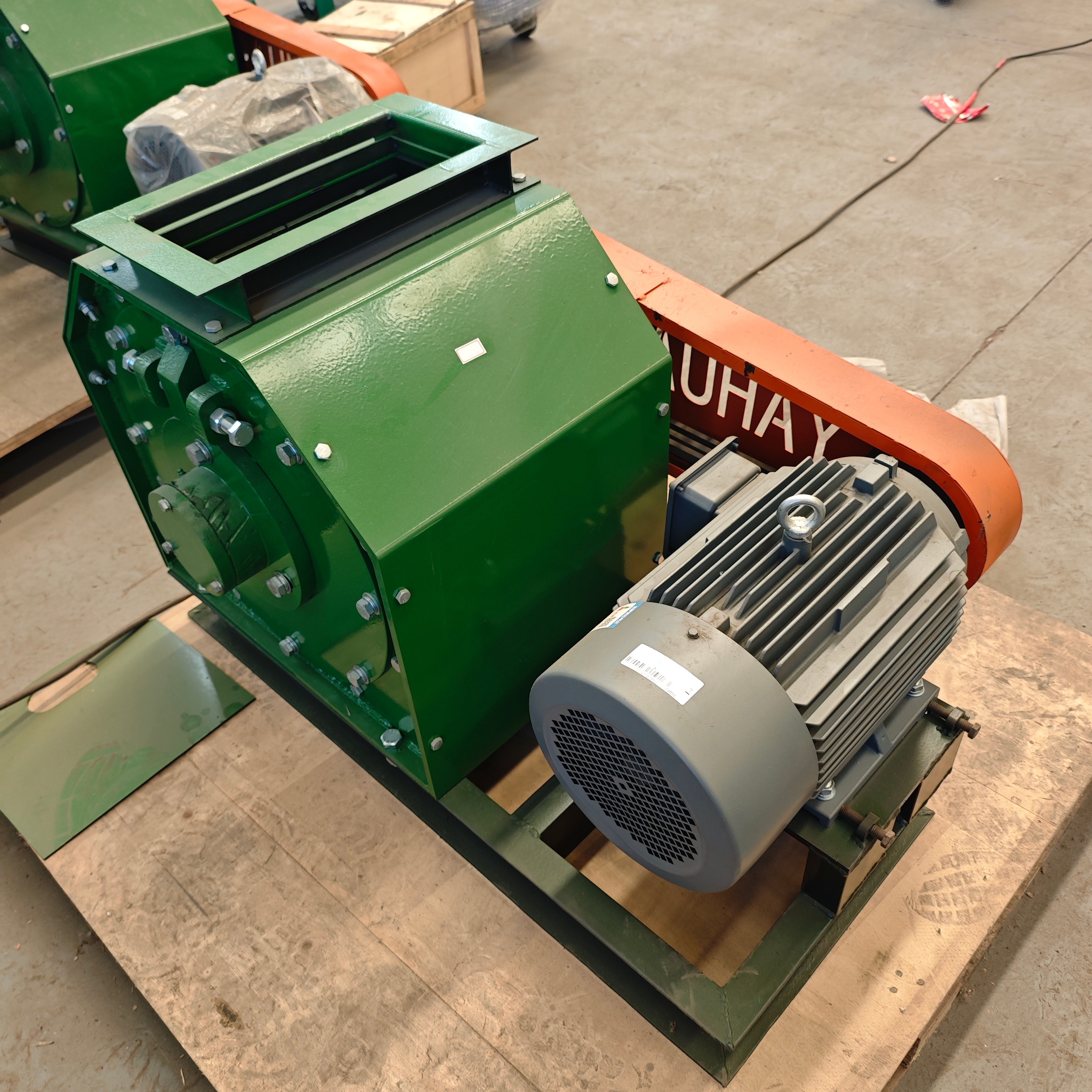

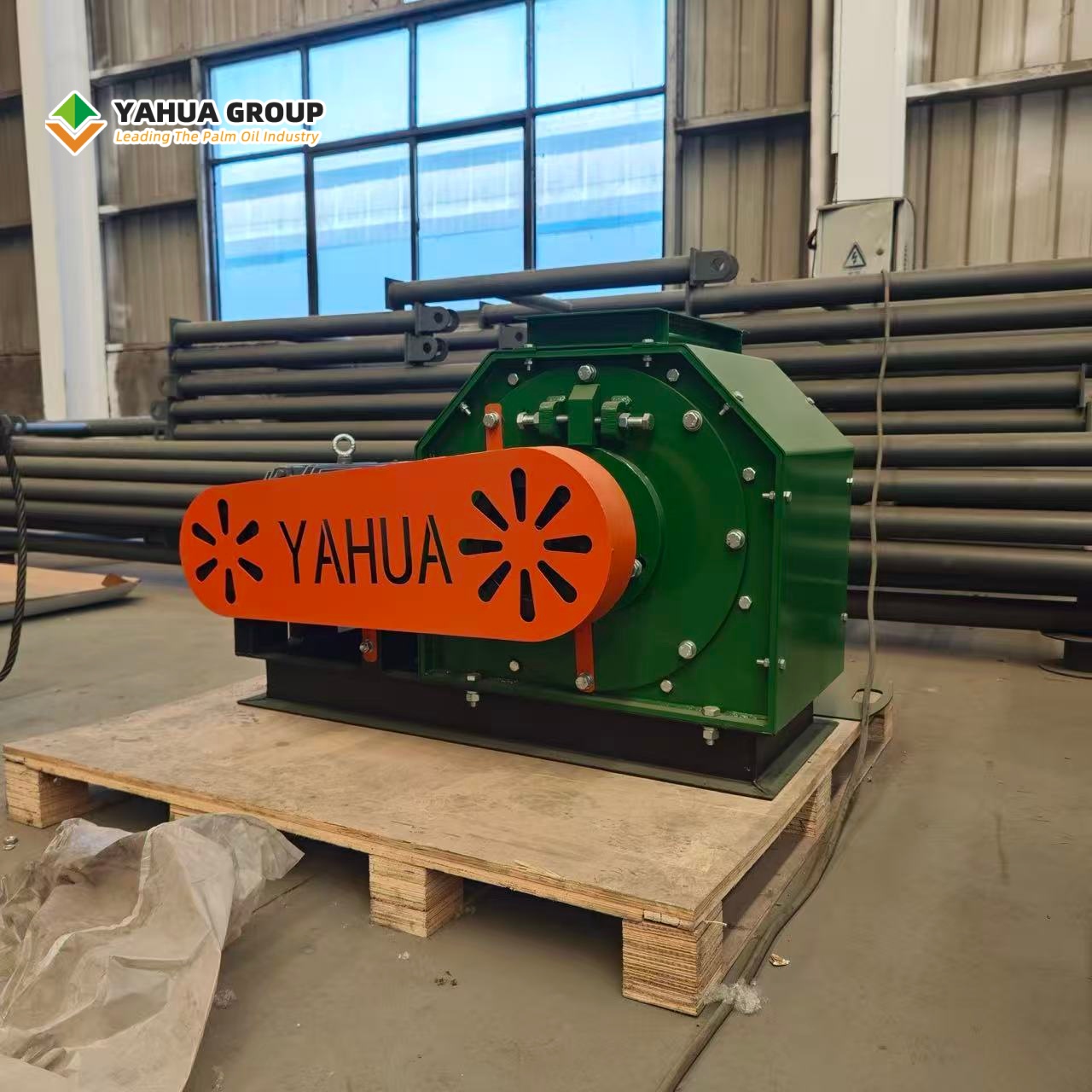

Equipment Name: Palm nut crusher | ||||
Function：Crushing the palm nut got palm kernel and palm shell | ||||
Raw material condition：Palm nut Moisture：18%-26% | ||||
Process：Friction and centrifugal force hitting | ||||
Gap adjustment: Move the main shaft | ||||
Item | Model | |||
YHM-4 | YH-6 | YH-8 | ||
Capacity ton/hr | 4 | 6 | 8 | |
Power kw 380V/3P/50Hz | 37 | 45 | 55 | |
Shaft Speed rpm/min | 1080 | 1080 | 920 | |
Size vibratory feeder % | 280×380 | 305×508 | 355×610 | |
Size Plate Magnet % | 178×305 | 178×305 | 178×355 | |
Driver connect Model | Belt wheel | Belt wheel | Belt wheel | |
Dimension | L（mm） | 950 | 1150 | 1350 |
W（mm） | 450 | 550 | 750 | |
H（mm） | 580 | 750 | 820 | |
Weight | kg | 270 | 356 | 520 |
Speciality | 1. The main frame bracket is cast with a sturdy cast iron structure to ensure a lower level of operating noise 2. The design of corrugated plate or corrugated rod components facilitates maintenance and inspection of the rotor components 3. The crusher can operate in both directions, allowing the machine to be used for a long time 4. The gap between the rotor and the corrugated plate or rod can be adjusted to maintain a higher crushing rate,And it will extend the service life of the corrugated plate or rod | |||
Payment | 1. 30% down payment after Sign contract 2. 70% before delivery 3. this price keep one month 4. Delivery time 60 days | |||
