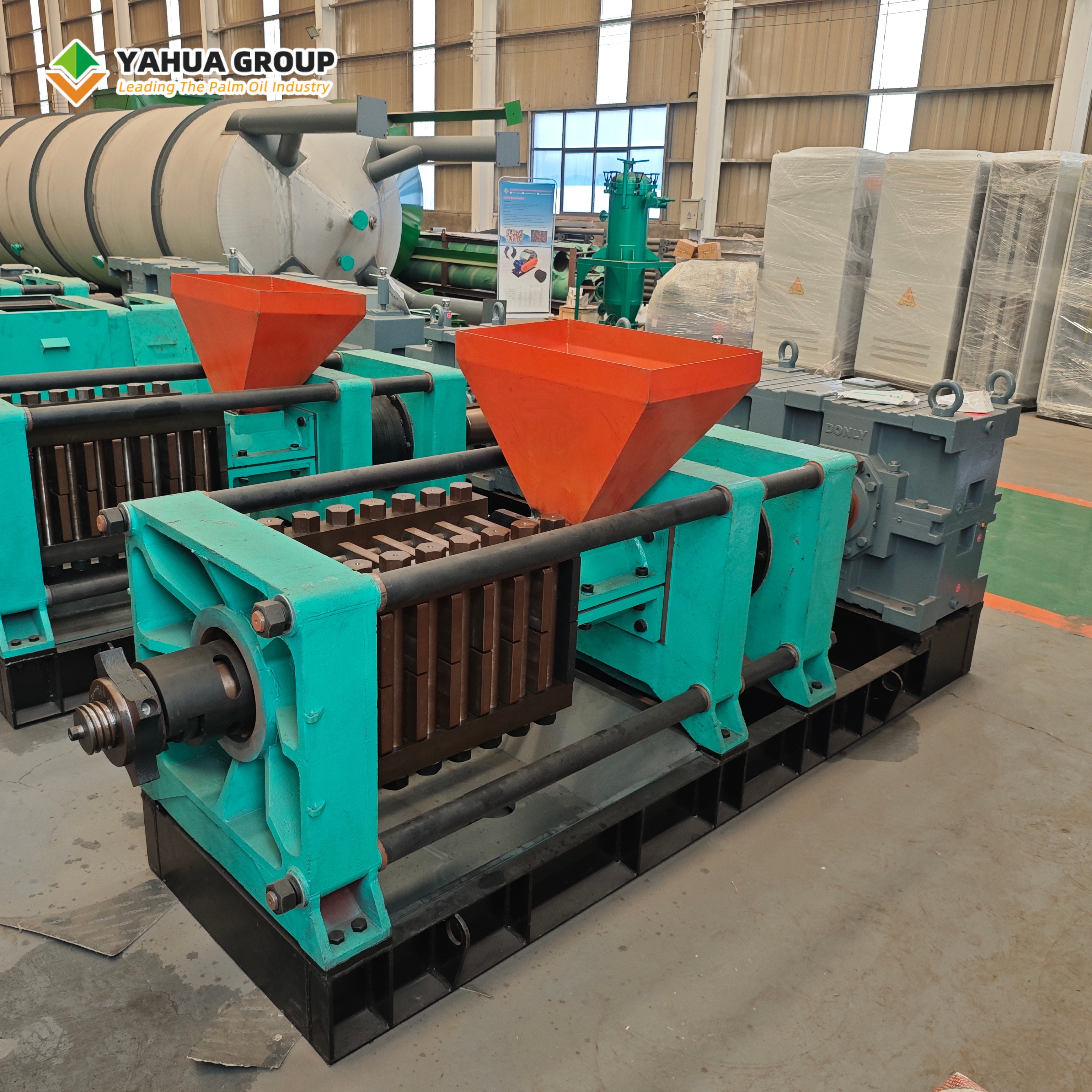

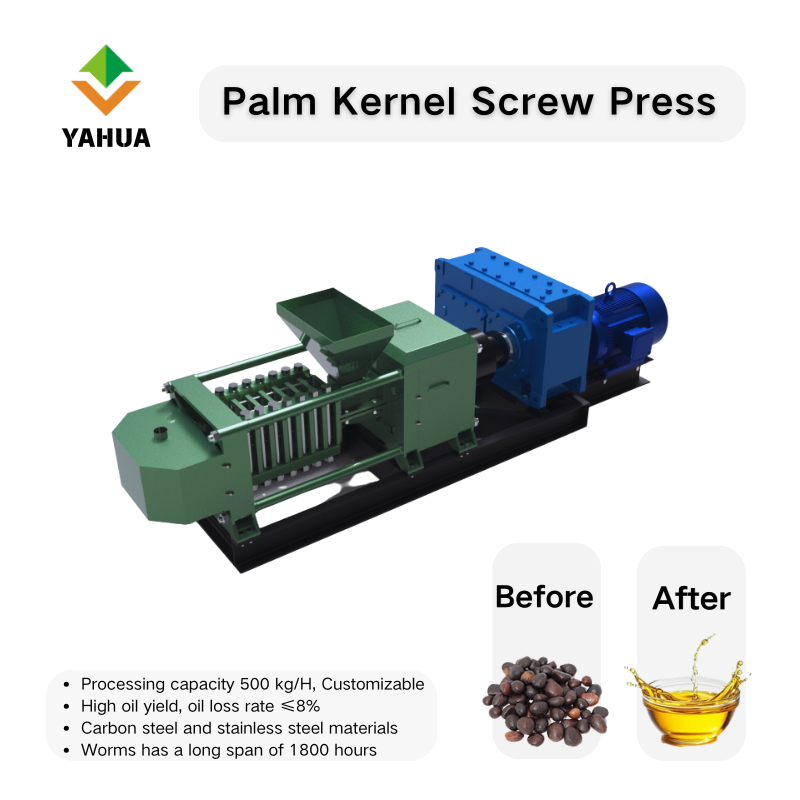

Equipment Name: Palm Kernel Expeller | ||||
Function：Got the palm kernel oil and palm kernel meal from palm kernel by Screw press | ||||
Raw material condition：Shell content ≤5% Moisture：8%-13%（dry base） | ||||
Process：2 times screw press | ||||
Pressure regulation：T Type Screw nut | ||||
Item | Model | |||
YH-1012 | YH-1517 | YH-2022 | ||
1st press Capacity ton/hr | 10~12 | 15~17 | 20~22 | |
2nd press Capacity ton/hr | 7~8 | 12~13 | 15~16 | |
Power kw 380V/3P/50Hz | 37 | 45 | 55 | |
Shaft Speed rpm/min | 10~13 | 10~13 | 11~14 | |
After 1st press oil loss % | 14-18 | 14-18 | 15-20 | |
After 2nd press oil loss % | 8-10 | 8-10 | 9-10 | |
Driver connect Model | Coupling | Coupling | Coupling | |
Dimension | L（mm） | 4500 | 4650 | 4780 |
W（mm） | 1150 | 1280 | 1320 | |
H（mm） | 1250 | 1300 | 1340 | |
Weight | kg | 3950 | 4200 | 4500 |

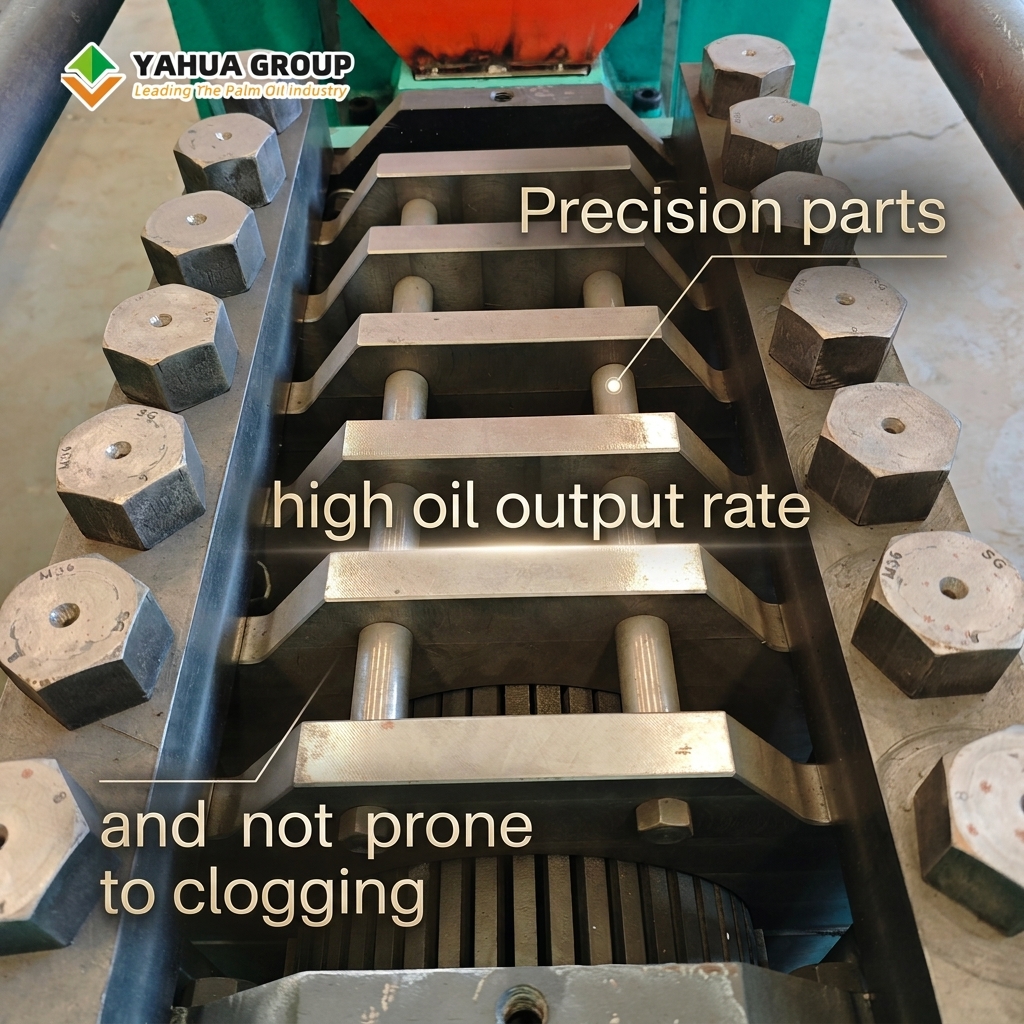

Speciality | 1. The worms is made of alloy material 2. Cage adopts Flat noodles type, which is more firm and not easy to block 3. Worms can be processed multiple times using wear-resistant welding rods for melting and multiple uses 4. Worms has a long span of 1200 hours | |||
Payment | 1. 30% down payment after Sign contract 2. 70% before delivery 3. this price keep one month 4. Delivery time 60 days | |||
