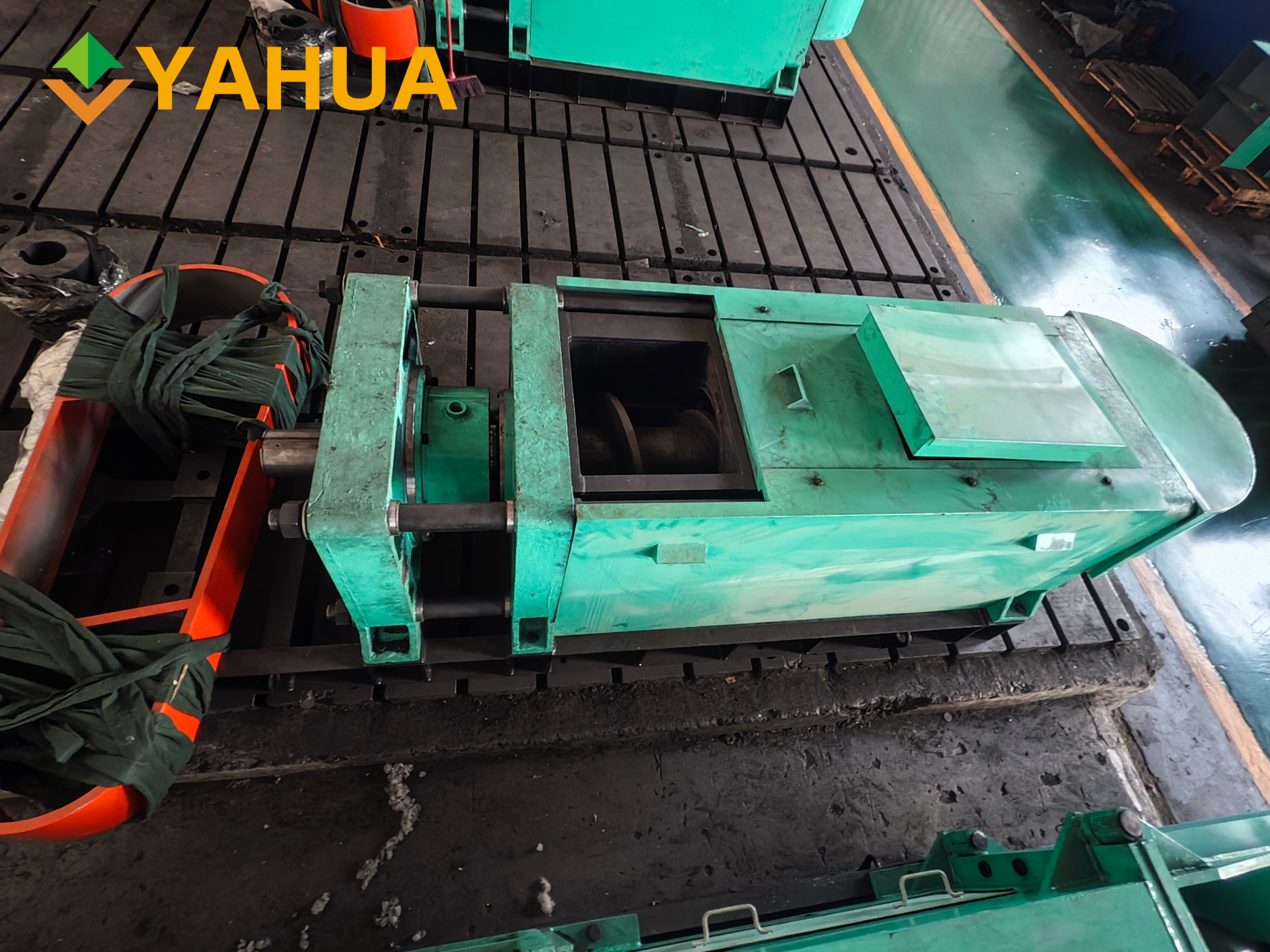

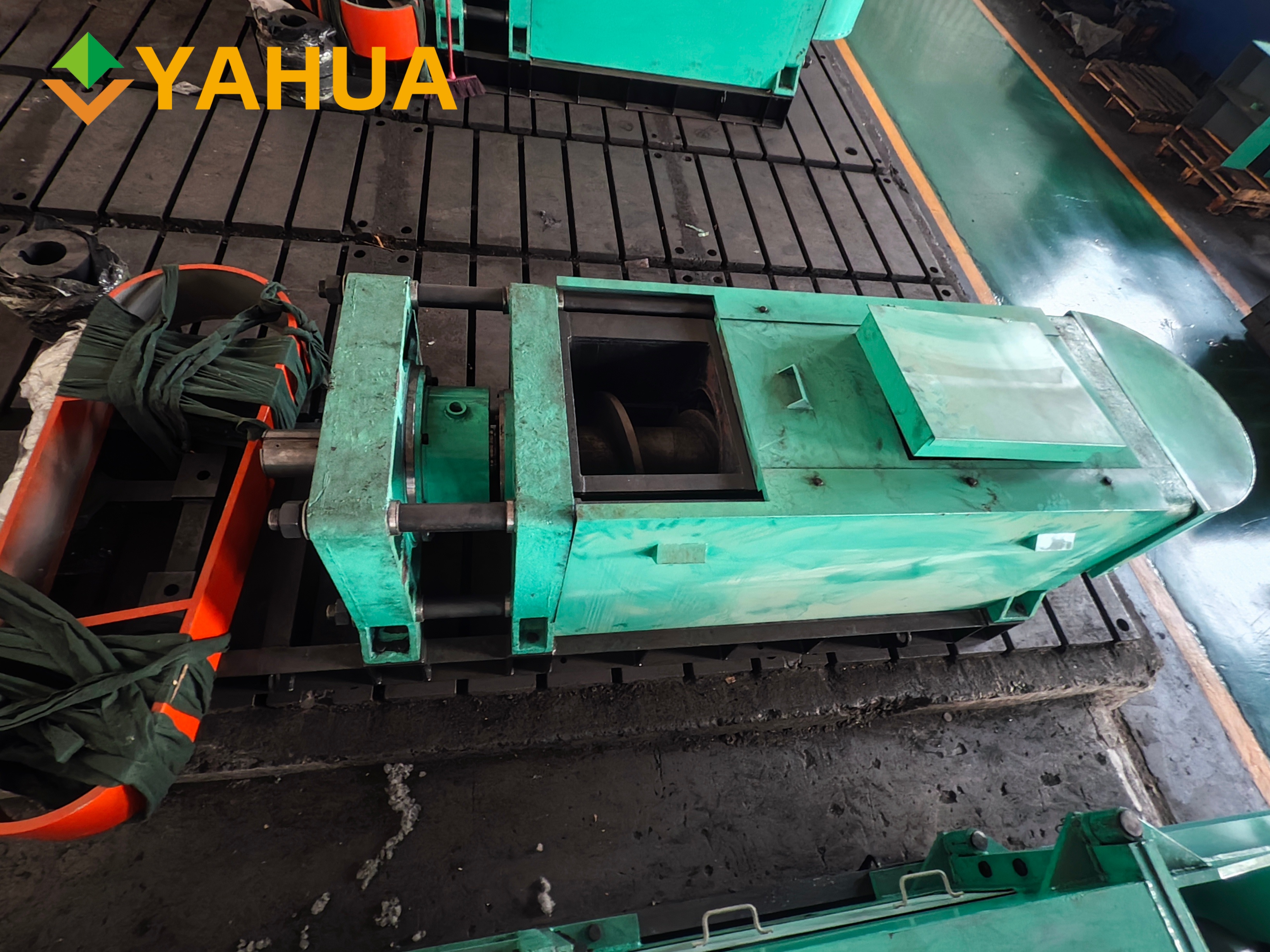

Equipment Name: Palm Fruit Empty Bunch Presser | |||
Function：Got the Juice and fiber from palm empty fruit bunch by Screw Squeeze,reduce moisture content | |||
Raw material condition：palm empty bunch Moisture：42-50% | |||
Process：Screw press | |||
Pressure regulation：Screw nut | |||
Item | Model | ||
YHEP-78 | YHEP-1112 | ||
Capacity FFB ton/hr | 7~8 | 11~12 | |
Power kw 380V/3P/50Hz | 75 | 90 | |
Shaft Speed rpm/min | 11~14 | 11~14 | |
After press oil loss % | 1.2-2 | 1.2-2 | |
Driver connect Model | Coupling | Coupling | |
Dimension | L（mm） | 4900 | 5100 |
W（mm） | 1350 | 1480 | |
H（mm） | 1600 | 1650 | |
Weight | kg | 8000 | 9200 |

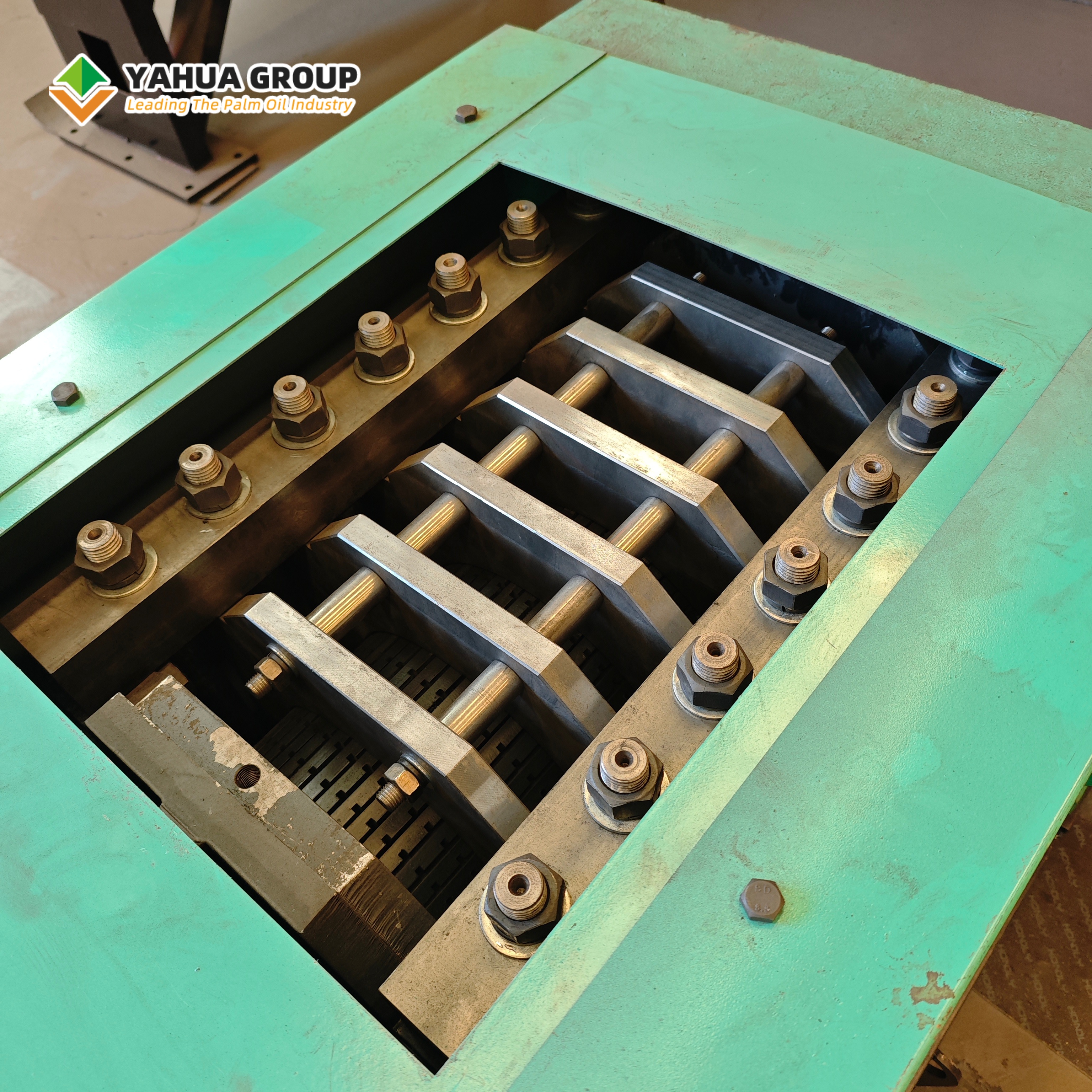

Speciality | 1. The worms is made of alloy material 2. Cage adopts Flat noddles type, which is more firm and not easy to block 3. Worms can be processed multiple times using wear-resistant welding rods for melting and multiple uses 4. Worms has a long span of 1200 hours | ||
Payment | 1. 30% down payment after Sign contract 2. 70% before delivery 3. this price keep one month 4. Delivery time 60 days | ||
